AmTrue series

  • ATP1203-01B
  • ATP1203-01B
  • ATP1203-01B
ATP1203-01BATP1203-01BATP1203-01B

ATP1203-01B

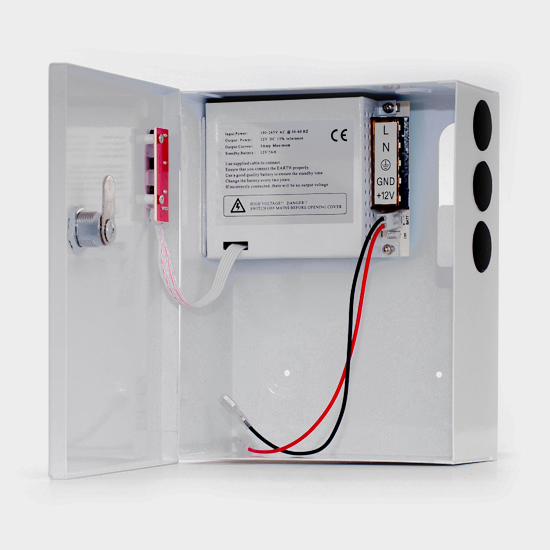

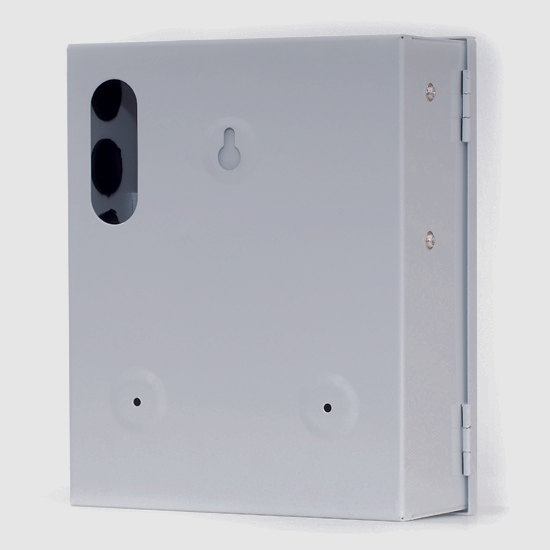

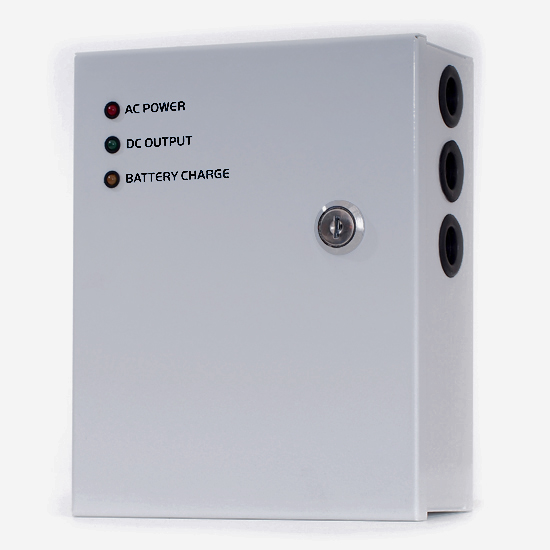

  • Metal cabinet with key lock
  • Battery over-charge, over-discharge protection
  • Additional current battery charge
  • Pro-wired battery connection
  • Product description: Applicable to all types of Alarm monitoring systems, Access control systems, Building intercom systems
  • INQUIRY

12Vdc 3Amp backup power supply

Input voltage: 190-240V AC @ 50/60Hz

Output voltage: 13.8V DC

Output current: 3A

Charge current: 1A Max.

Ripple&Efficiency: <100mV / >82%

Dimensions: 163×203×74mm

Recommended battery: 12V7Ah

Weight: 1.2kg
