AmTrue series

ATP1205-01B

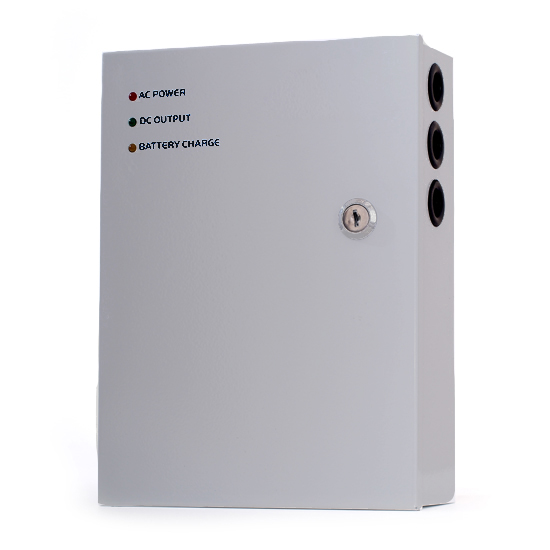

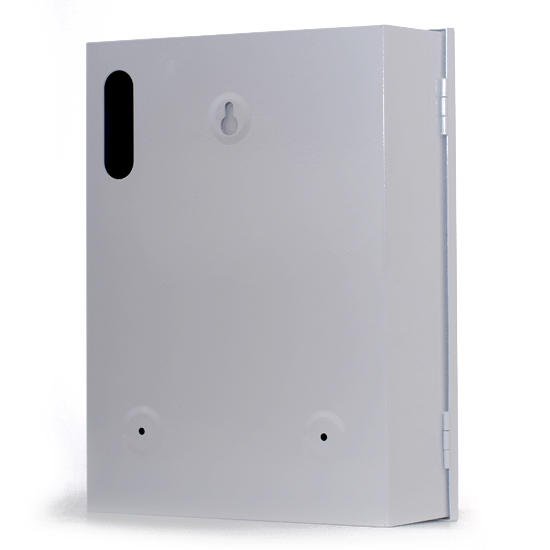

Metal cabinet with key lock
Battery over-charge, over-discharge protection
Additional current battery charge

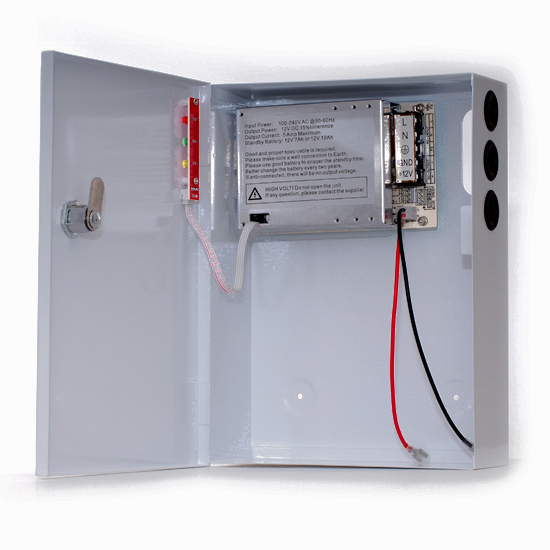

Pro-wired battery connection
Product description: Applicable to all types of Alarm monitoring systems, Access control systems, Building intercom systems
INQUIRY

12Vdc 5Amp backup power supply

Input voltage: 100-240V AC @ 50/60Hz

Output voltage: 13.8V DC

Output current: 5A

Charge current: 1A Max.

Ripple&Efficiency: <100mV / >82%

Dimensions: 195×265×75mm

Recommended battery: 12V7Ah

Weight: 1.4kg
