AmTrue series

ATP1203-02B

Metal cabinet with key lock
Battery over-charge, over-discharge protection
Additional current battery charge
Pro-wired battery connection
Product description: Applicable to all types of Alarm monitoring systems, Access control systems, Building intercom systems
INQUIRY

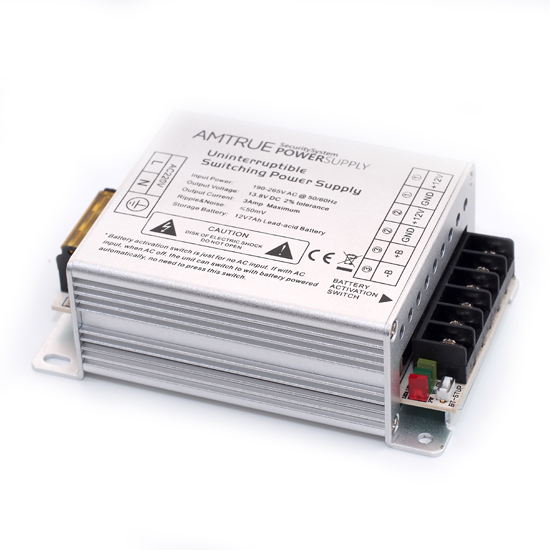

12Vdc 3Amp backup power supply

Input voltage: 190-240V AC @ 50/60Hz

Output voltage: 13.8V DC

Output current: 3A

Charge current: 1A Max.

Ripple&Efficiency: <100mV / >82%

Dimensions: 120×80×45mm

Recommended battery: 12V7Ah

Weight: 0.4kg
